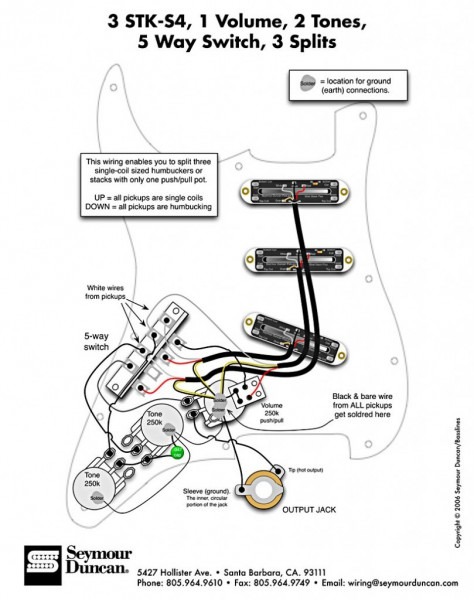

This wiring diagram, however has the lugs staggered in different directions. Output – The overall output of a passive pickup is influenced by several design factors: number of turns of wire on the coil(s), strength of the magnet, coil geometry and magnetic circuit geometry.The output of an active pickup is influenced by the same factors but is predominantly determined by the design of the onboard preamp. I have this import 5 way switch, which is just a straight line of 8 lugs. Looking at this from another point of view, ceramic magnets can be said to produce increased clarity, better note definition and faster response to picking. It is for this reason that many consider ceramic magnets to have a brittle sound, not their gauss strength. This has the effect of decreasing the inductance of the pickup and significantly raising the resonant frequency. The magnets at the lower end of the scale tend to produce a softer attack and a degree of “bloom” to the envelope of the note.Ĭeramic magnets should be considered as an individual case because they do not contain any nickel or iron. GFS Humbuckers may also be wired using Seymour Duncan wiring codes. As the gauss strength goes up, so does the output. From there in order of ascending strength you have A2, A4, A5, A6, Ceramic and A8. When wiring a P-Rails, it’s very helpful to think of it as simply being two pickups that happen to be attached to each other. Of the magnets we use, Alnico 3 has the lowest gauss strength.
#Seymour duncan wiring diagrams 5 way pdf#
It includes 9 step-by-step videos (each 3-5 min long) along with a downloadable PDF and a detailed list of recommended, affordable, quality tools and supplies specific to this guitar style.
#Seymour duncan wiring diagrams 5 way how to#
In the case of pickups, the most significant characteristic is the gauss strength, which is a measure of the density of the magnetic field. This section shows you step-by-step how to install pickups in your Tele guitar. /rebates/2fsingle-product2fexciter&. Magnet – We use several different magnet formulations: Alnico 2, Alnico 3, Alnico 4, Alnico 5, Alnico 6, Alnico 8 and Ceramic 5/8. DCR is often used as a gauge of output because as the turns increase, so does the output, though magnet type and the coil geometry also influence output.
The length of the coil form, the number of turns and the gauge of wire all affect the DCR reading. Alex Skolnick humbuckers are designed to complement the expressive melodies and aggressive palm muting that define his signature genre-spanning, jaw-dropping and pit-inducing tones. DCR – Short for DC Resistance, is measured in Ohms and is the total resistance of the copper wire wound around a coil form.
